VIS 0° Coated Plano-Concave (PCV) Lenses
Original price was: $63.00.$44.10Current price is: $44.10.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products

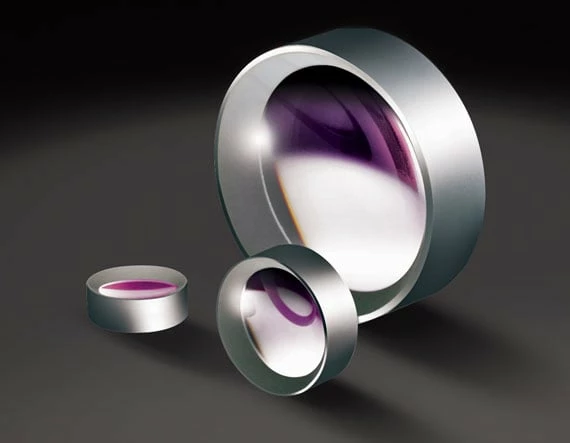

TECHSPEC® VIS 0° Coated Plano-Concave (PCV) Lenses are designed to bend parallel input rays to diverge from one another on the output side of the lens causing this lens to have a negative focal length. These lenses can be used for balancing aberrations created by other lenses within a system due to their negative spherical aberration. Plano-Concave (PCV) lenses are commonly used in a variety of applications including image reduction, beam expansion, and telescopes. TECHSPEC VIS 0° Coated Plano-Concave (PCV) Lenses are best used in 0° angle of incidence situations and provide optimized transmission in the 425nm – 675nm range. These lenses are also available Uncoated, VIS-EXT, MgF2, VIS-NIR, YAG-BBAR, NIR I, or with NIR II AR coating options.
- AR Coated to Provide <0.4% Reflectance per Surface for 425 – 675nm
- Designed for 0° Angle of Incidence
- Various Coating Options: Uncoated, VIS-EXT, MgF2, VIS-NIR, YAG-BBAR, NIR I, and NIR II
| Coating | VIS 0° (425-675nm) |
|---|---|
| Wavelength Range (nm) | 425 – 675 |
| Bevel | Protective bevel as needed |
| Coating Specification | Ravg ≤0.4% @ 425 – 675nm |
| Focal Length Specification Wavelength (nm) | 587.6 |
| Focal Length Tolerance (%) | ±1 |
| Power (P-V) @ 632.8nm | 1.5λ |
| Irregularity (P-V) @ 632.8nm | λ/4 |
