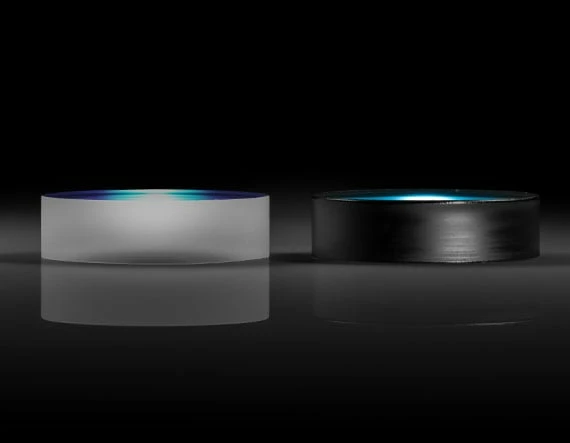

VIS-EXT Coated Double-Concave (DCV) Lenses
Original price was: $41.00.$28.70Current price is: $28.70.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
TECHSPEC® VIS-EXT Coated Double-Concave (DCV) Lenses are designed to have two inward curved surfaces and a negative focal length similar to Plano-Concave (PCV) lenses. These lenses can be used for balancing aberrations created by other lenses within a system due to their negative spherical aberration. Plano-Concave (DCV) lenses are commonly used in a variety of applications including image reduction, beam expansion and telescopes. TECHSPEC® VIS-EXT Coated Plano-Concave (DCV) Lenses offer optimal performance in the 350nm to 700nm range. These lenses are also available Uncoated, MgF2, VIS 0°, VIS-NIR, NIR I, or with NIR II AR coating options.
- AR Coated to Provide <0.5% Reflectance per Surface for 350 – 700nm
- Designed for 0° Angle of Incidence
- Precision Diameter and Centration Tolerances Allow for Easy OEM Integration
- Additional AR Coating Options Available: Uncoated, MgF2, VIS 0°, VIS-NIR, NIR I, and NIR II
| Substrate | N-BK7 |
|---|---|
| Coating | VIS-EXT (350-700nm) |
| Wavelength Range (nm) | 350 – 700 |
| Bevel | Protective bevel as needed |
| Coating Specification | Ravg ≤0.4% @ 425 – 675nm |
| Focal Length Specification Wavelength (nm) | 587.6 |
| Focal Length Tolerance (%) | ±1 |
| Surface Quality | 40-20 |
| Damage Threshold, By Design | 5 J/cm2 @ 532nm, 10ns |
| Power (P-V) @ 632.8nm | 1.5λ |
| Irregularity (P-V) @ 632.8nm | λ/4 |
