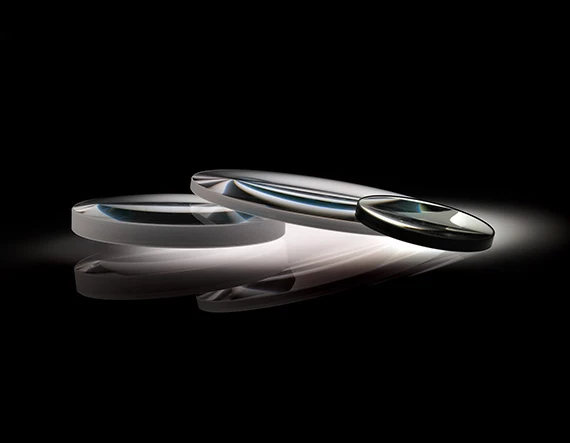

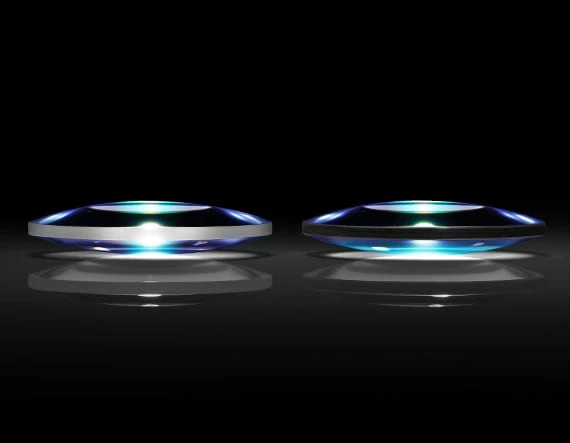

VIS-EXT Coated Double-Convex (DCX) Lenses
Original price was: $68.00.$47.60Current price is: $47.60.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
TECHSPEC® VIS-EXT Coated Double-Convex (DCX) Lenses, also referred to as bi-convex lenses, have two positive, symmetrical faces with equal radii on both sides. These lenses are generally recommended for finite imaging applications with a conjugate ratio (ratio between object distance and image distance) between 0.2 and 5. At a conjugate ratio of 1, aberrations such as spherical aberration, chromatic aberration, coma, and distortion are minimized or cancelled due to the symmetric lens design. TECHSPEC VIS-EXT Coated Double-Convex Lenses are available in a variety of substrates and coating options for the visible and NIR spectra.
- AR Coated to Provide <0.5% Reflectance per Surface for 350 – 700nm
- Minimize Aberrations Including Spherical and Coma
- UV Fused Silica DCX Lenses Available
- Other Coating Options Available: Uncoated, MgF2, VIS 0°, NIR I, NIR II, VIS-NIR, and YAG-BBAR
| Coating | VIS-EXT (350-700nm) |
|---|---|
| Power (P-V) @ 632.8nm | 1.5λ |
| Irregularity (P-V) @ 632.8nm | λ/4 |
| Bevel | Protective bevel as needed |
| Focal Length Specification Wavelength (nm) | 587.6 |
| Focal Length Tolerance (%) | ±1 |
| Wavelength Range (nm) | 350 – 700 |
