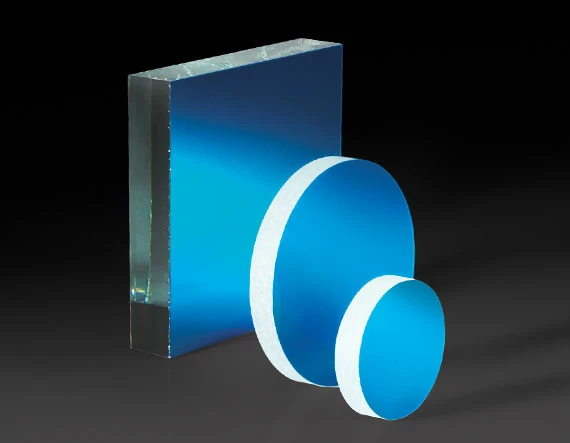

Visible Laser Diode Mirrors
Original price was: $24.50.$17.15Current price is: $17.15.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
These Visible Laser Diode Mirrors are specially coated to attain maximum reflection of visible laser diodes. Optimized for 633nm at a 45° angle of incidence, these mirrors provide 97% reflectance versus only 85 – 90% for standard first surface mirrors. This reduced loss is particularly important in multiple reflection systems, where loss can significantly impact system efficiency.
- Over 95% Reflectance of Visible Laser Diode Light
- Ideal for Multiple Reflection Systems
- Coating Optimized for 633nm at 45° AOI
| Substrate | Float Glass |
|---|---|
| Surface Quality | 80-50 |
| Dimensional Tolerance (mm) | ±0.25 |
| Coating Specification | Rabs >97% @ 633nm |
| Coating | Dielectric Mirror (500-700nm) |
| Coating Type | Dielectric |
| Design Wavelength DWL (nm) | 633 |
| Durability | MIL-C-48497A |
