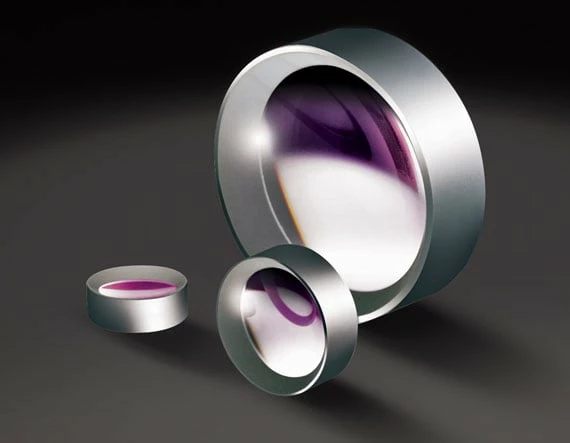

YAG-BBAR Coated Plano-Concave (PCV) Lenses
Original price was: $68.00.$47.60Current price is: $47.60.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
TECHSPEC® YAG-BBAR Coated Plano-Concave (PCV) Lenses are designed to bend parallel input rays to diverge from one another on the output side of the lens causing this lens to have a negative focal length. These lenses can be used for balancing aberrations created by other lenses within a system due to their negative spherical aberration. Plano-Concave (PCV) lenses are commonly used in a variety of applications including image reduction, beam expansion and telescopes. TECHSPEC® YAG-BBAR Coated Plano-Concave (PCV) Lenses feature less than 0.25% reflection at common Nd:YAG laser wavelengths of 532nm and 1064nm. These lenses are also available Uncoated, VIS-EXT, MgF2, VIS 0°, VIS-NIR, NIR I, or with NIR II AR coating options.
- Negative Focal Lengths for Beam Expansion or Light Projection Applications
- Optimized for R<0.25% at both 532nm and 1064nm
- AR Coated to Provide <1.0% Reflectance per Surface for 500 – 1100nm
- Various Coating Options: Uncoated, VIS-EXT, MgF2, VIS 0°, VIS-NIR, NIR I, NIR II, and 1064nm V-Coat
| Coating | YAG-BBAR (500-1100nm) |
|---|---|
| Wavelength Range (nm) | 500 – 1100 |
| Bevel | Protective bevel as needed |
| Focal Length Specification Wavelength (nm) | 587.6 |
| Focal Length Tolerance (%) | ±1 |
| Damage Threshold, By Design | 5 J/cm2 @ 532nm, 10ns |
| Power (P-V) @ 632.8nm | 1.5λ |
| Irregularity (P-V) @ 632.8nm | λ/4 |
