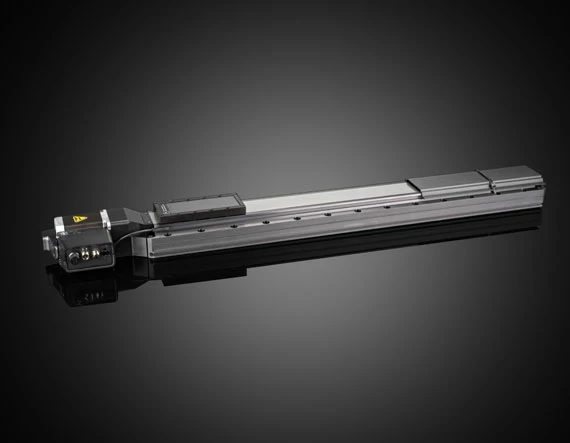

Zaber™ High Load Capacity Motorized Linear Stages
Original price was: $360.00.$96.99Current price is: $96.99.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
Zaber™ High Load Capacity Motorized Linear Stages feature a load capacity of 510kg (5003N) making them ideal for factory automation applications where precise linear adjustments of heavy components are necessary. These stages include a rotary quadrature encoder integrated into the stepper motor with 400 Counts per Revolution (CPR), as well as closed-loop control and slip/stall detection and recovery. Zaber™ High Load Capacity Motorized Linear Stages have an indexed knob providing versatility of analog control in the absence of digital input, as well as a flexible stainless steel dust cover to prevent the ingress of small particulates.
Note: A 24-48 VDC universal power supply (required), data cables for daisy chaining, and computer interface cables (USB or RS-232) are sold separately.
- High Load Capacity of 510kg
- 500 and 1000mm Travel Options
- Integrated Controller and Encoder with 400 Counts per Revolution (CPR)
| Type of Movement | Linear (X) |
|---|---|
| Power Supply | 24-48 VDC |
| Encoder Resolution | 400 CPR |
| Encoder Type | Rotary Quadrature Encoder |
| Maximum Operating Current (mA) | 3600 |
| Computer Interface | RS-232 with #15-297 |
| Type of Motor | Stepper (2 Phase) |
| Thrust (N) | 1200 |
| Resolution (μm) | 0.390625 |
| Repeatability (μm) | |
| Operating Temperature (°C) | 0 – 50 |
| Guide System | Recirculating Ball Linear |
| Note | Requires a 24-48 VDC power supply and either #15-295 for USB connectivity or #15-297 for RS-232 connectivity. A data cable (#15-296 or #15-299) can be used to daisy chain multiple stages together to control simultaneously. |
| Manufacturer | Zaber Technologies Inc. |
| Manual Control/ LED Indicators | Yes |
| Load Capacity (kg) | 510 |
| Height (mm) | 57.2 |
| Encoder | Yes |
| Backlash (μm) | |
| Type of Drive | Precision Ball Screw |
| Cantilevered Load Capacity (N⋅m) | 120 |
