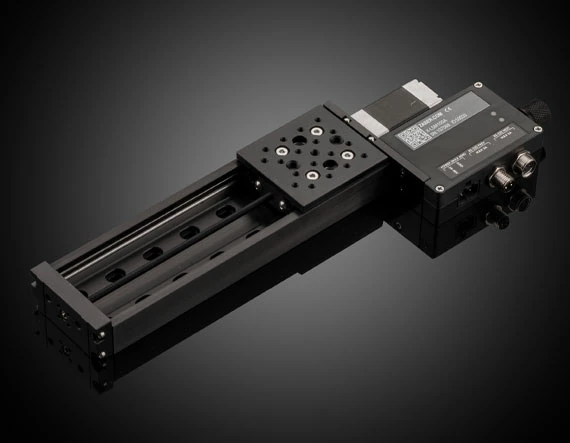

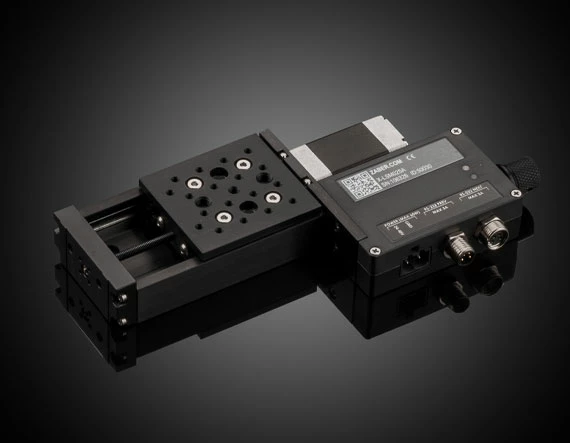

Zaber™ High Precision Motorized Stage Systems are computer-controlled, self-contained linear stages that include a stepper motor and built-in controller. Zaber™ High Precision Motorized Stage Systems can connect directly to a computer’s RS-232 port, while the included software provides an easy method for controlling travel distance or position. Additionally, the manual control potentiometer permits smooth manual movement. Encoder versions are available for all travel lengths, with 200 Counts per Revolution (CPR) rotary quadrature encoders integrated into the stepper motor. The integrated rotary encoder provides closed-loop control and slip/stall detection and recovery.
Note: A bottom adapter plate (sold separately) is required for mounting to a standard metric or English breadboard. A 24-48 VDC universal power supply, data cables for daisy chaining, and computer interface cables (USB or RS-232) are sold separately as accessories. Use Top Adapter Plate #68-644 to Mount 70mm TECHSPEC® Stages.
- High Accuracy, 25mm, 50mm, 100mm, and 200mm Travel Options
- Integrated Motor and Controller
- Available with Integrated, 200 Counts per Revolution (CPR) Motor Mounted Encoder
- Easily Configurable in X-Y or X-Y-Z Configurations
| Type of Movement | Linear (X) |
|---|---|
| Parallelism (μm) | |
| Computer Interface | USB with #15-295RS-232 with #15-297 |
| Type of Motor | 2-Phase Stepper |
| Speed (mm/s) | 0.00003 to 26 |
| Resolution (μm) | 0.05 |
| Repeatability (μm) | |
| Power Supply | Power Supply Required and Sold Separately:USA: #15-294Europe: #15-294Japan: #23-662Korea: #33-773China: #15-294 |
| Operating Temperature (°C) | 0 – 50 |
| Guide System | Needle Roller Bearing |
| Note | Requires a 24-48 VDC power supply and either #15-295 for USB connectivity or #15-297 for RS-232 connectivity. A data cable (#15-296 or #15-299) can be used to daisy chain multiple stages together to control simultaneously. |
| Manufacturer | Zaber Technologies Inc. |
| Manual Control/ LED Indicators | Yes |
| Load Capacity (kg) | 10 |
| Height (mm) | 21 |
| Backlash (μm) | |
| Type of Drive | Precision Lead Screw |
| Maximum Operating Current (mA) | 350 |
