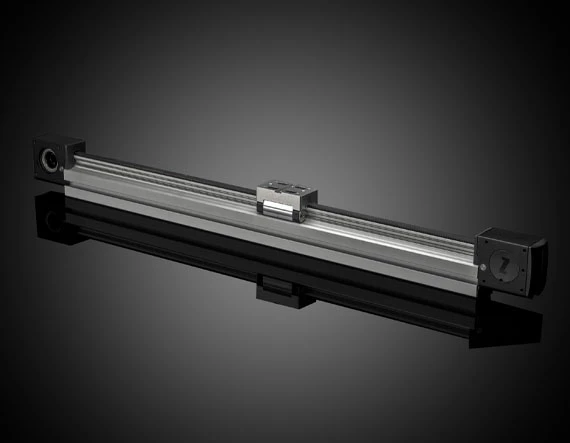

Zaber™ T-Slot Extrusion Belt Driven Stages
Original price was: $374.00.$98.99Current price is: $98.99.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
Zaber™ T-Slot Extrusion Belt Driven Stages are computer-controlled stages based on a modular, expandable, T-Slot extrusion structure. The stages are compatible and easily integrated with most T-Slot extrusion framing systems. Zaber™ T-Slot Extrusion Belt Driven Stages can be controlled by the Zaber™ Programmable Joystick Controller (sold separately), a computer using an optional RS-232 or USB data cable, or manually with the knob integrated into the motor unit. The stage mounting platforms include 6X M4 x 0.7 mounting holes on a 25mm grid. Each stage features rotary quadrature encoders integrated into the stepper motor, with 400 Counts per Revolution (CPR) encoder resolution. The integrated rotary encoder provides closed-loop control and slip/stall detection and recovery.
Note: 24-48 VDC universal power supply (required), data cables for daisy chaining, and computer interface cables (USB or RS-232) are sold separately as accessories.
- Designed for Use with Most 40mm T-Slot Extrusion Framing Systems and Accessories
- 500mm and 1000mm Long Travel Lengths Available
- Controlled Manually or via RS-232 Serial Interface
- Integrated 400 Counts per Revolution (CPR) Motor Mounted Encoder
| Type of Movement | Linear (X) |
|---|---|
| Repeatability (μm) | |
| Encoder Resolution | 400 CPR |
| Encoder Type | Rotary Quadrature Encoder |
| Maximum Operating Current (mA) | 3500 |
| Computer Interface | USB with #15-295RS-232 with #15-297 |
| Type of Motor | 2-Phase Stepper |
| Thrust (N) | 90 |
| Speed (mm/s) | 3000 (Maximum) |
| Resolution (μm) | 7.03125 |
| Power Supply | Power Supply Required and Sold Separately:USA: #15-294Europe: #15-294Japan: #23-662Korea: #33-773China: #15-294 |
| Guide System | Recirculating Ball Linear Guide |
| Operating Temperature (°C) | 0 – 50 |
| Note | Requires a 24-48 VDC power supply and either #15-295 for USB connectivity or #15-297 for RS-232 connectivity. A data cable (#15-296 or #15-299) can be used to daisy chain multiple stages together to control simultaneously. |
| Manufacturer | Zaber Technologies Inc. |
| Manual Control/ LED Indicators | Yes |
| Load Capacity (kg) | 50 |
| Height (mm) | 76 |
| Encoder | Yes |
| Backlash (μm) | |
| Type of Drive | Synchronous Belt |
| Motor Installation Guide | Motor Installation and Setup Guide can be found here |
