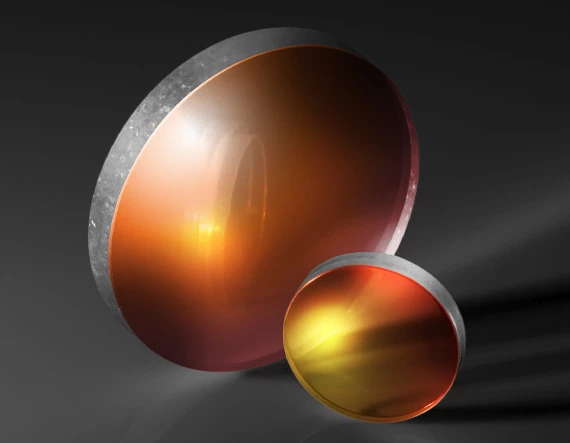

Zinc Sulfide Multispectral Windows
Original price was: $287.50.$95.99Current price is: $95.99.
- Free Shipping, Quality Goods
- Free Shipping, No Compromise on Quality
- Quality Products, Quality Service
- Effortless Shopping, Quality Products
TECHSPEC® Zinc Sulfide Multispectral Windows are manufactured from a water-free, multi-spectral grade of zinc sulfide that has low absorption and scatter properties over its broad transmission range of 0.4 – 12μm. Like our TECHSPEC® Zinc Selenide Windows, Zinc Sulfide Multispectral is a chemically vapor deposited material which is commonly used in thermal imaging. With its excellent transmission properties in the visible and infrared, Zinc Sulfide Multispectral is the material of choice for systems that have both visible and mid-wave or long-wave infrared sensors. It is slightly harder and more chemically resistant than zinc selenide.
Note: Although special handling is required, acetone may be used to remove particles or debris from the windows.
- Multispectral Grade Zinc Sulfide Substrate
- Low Absorption and Low Scatter from 0.4 – 12μm
- Available Uncoated or 3 – 12μm Broadband AR Coated Option
| Bevel | Protective as needed |
|---|---|
| Clear Aperture (%) | 90.00 |
| Coefficient of Thermal Expansion CTE (10-6/°C) | 6.8 |
| Density (g/cm3) | 4.08 |
| Edges | Fine Ground |
| Index of Refraction nd | 2.371 |
| Knoop Hardness (kg/mm2) | 210 |
| Parallelism (arcmin) | <1 |
| Poisson's Ratio | 0.27 |
| Substrate | Zinc Sulfide Multispectral |
| Surface Flatness (P-V) | λ/10 @ 10.6μm |
| Surface Quality | 60-40 |
| Young's Modulus (GPa) | 74.5 |
| Type of Window | Crystal |
